High Precision Ground Teeth Gear Rack
Transmission parts - Matching gear -Accurate Transmission -Seamless Matching
Gear rack is a rotating machine part with cut teeth, or cogs, which mesh with another toothed part in order to transmit torque. It includes spur gear, helical gear, skew gear, bevel gear, spiral bevel gear and so on. It is widely used for all kinds of machinery equipment.

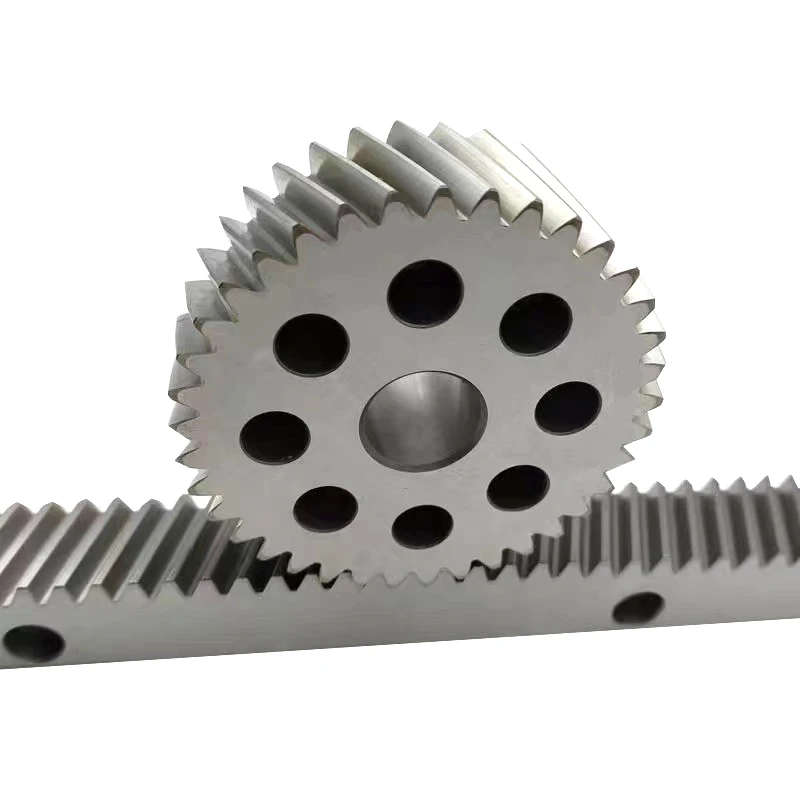

Helical Gear Rack and Pinion
Sides ground: Included.
|
Product Type
|
Helical teeth gear rack/ Straight teeth gear rack
|
|
Model Number
|
M1 M1.25 M1.5 M2 M2.5 M3 M4 M5 M6 M8 M10 M12
|
|
Length
|
500mm, 1000mm, 2000mm
|
|
Material
|
C45 steel, 42CrMo, SS304, SS316, Nylon, POM
|
|
Helix Angle
|
Standard 19°31'42'' or customized angle
|
|
Precision
|
DIN5 DIN6 DIN7 DIN8 DIN9 DIN10
|
|
Pressure Angle
|
14.5 / 15 / 20 degree
|
|
Finish
|
Black oxide, galvanized, teeth hardened, Nickle-plated
|
|
Application
|
Automation Machine, CNC Machine, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction works
|
|
Delivery Time
|
customized size 15-35 days
|

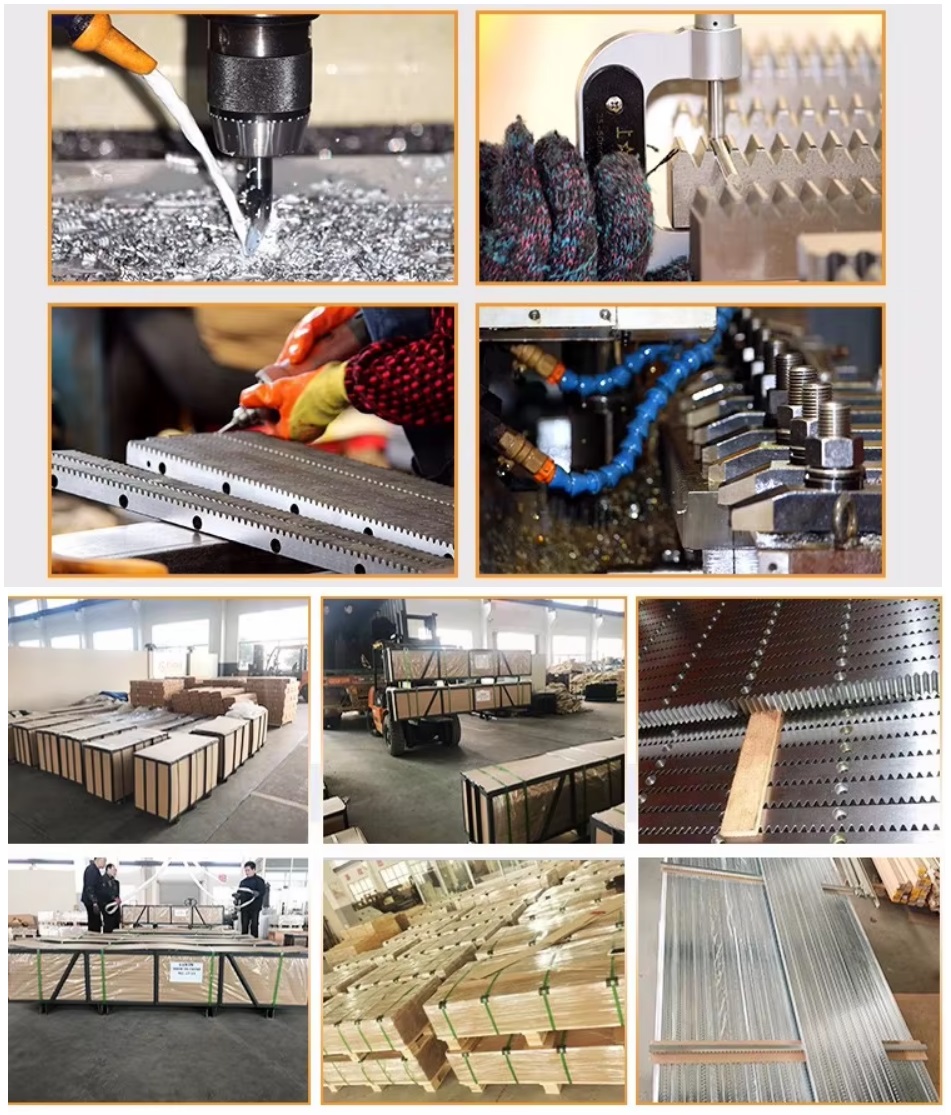

Gear rack's detail:
